Autel Robotics Alpha DG-L35T Gimbal Camera
$5,831.40
180 in stock
Description
Autel Robotics Alpha DG-L35T Gimbal | Insight Beyond Limits

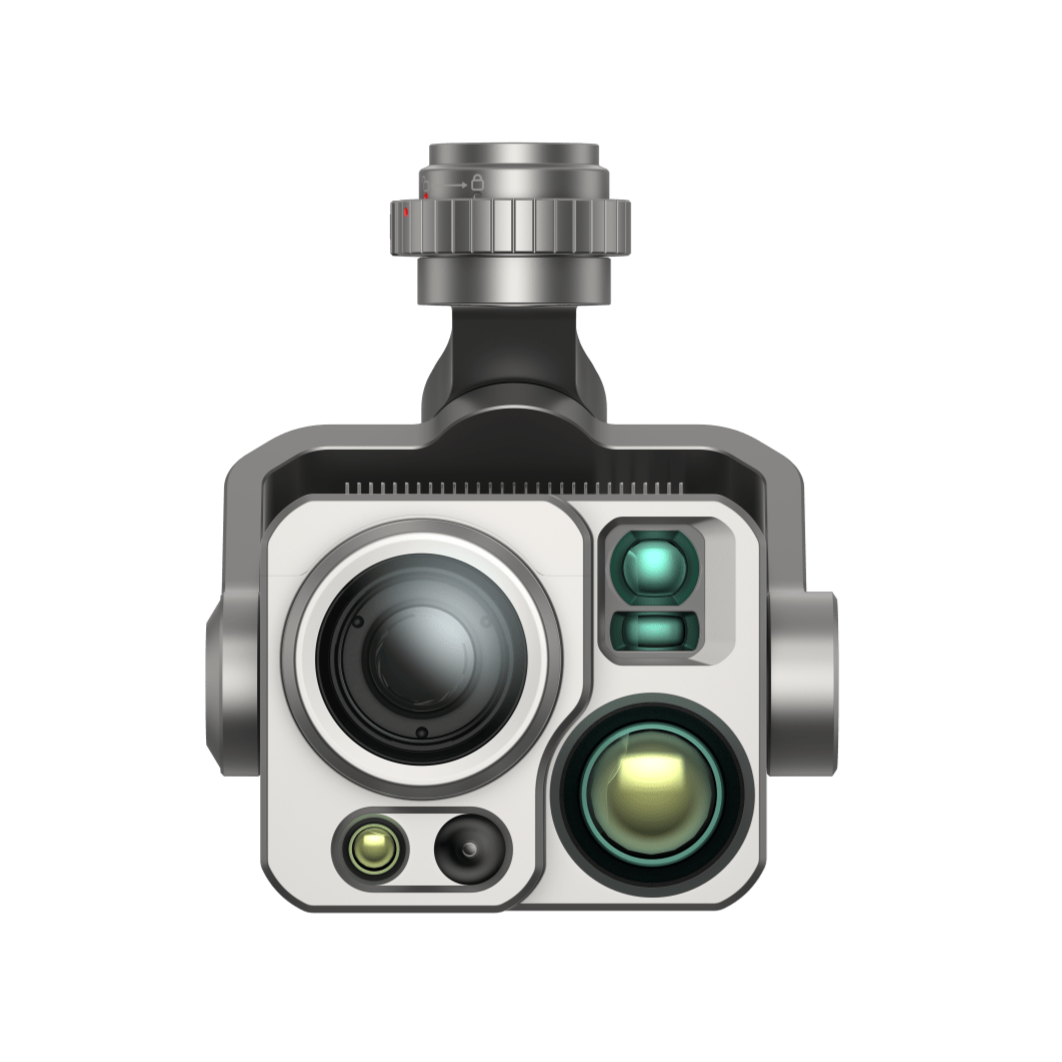

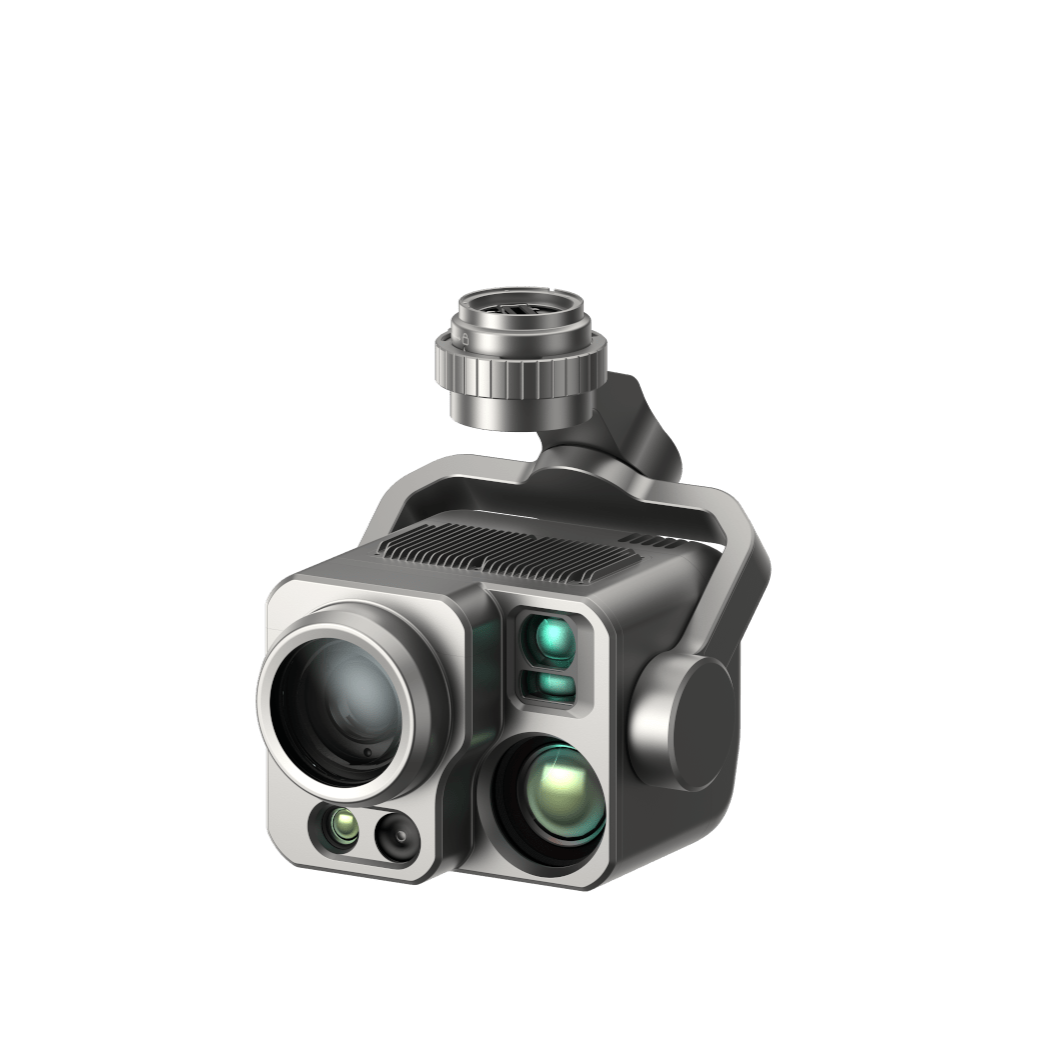

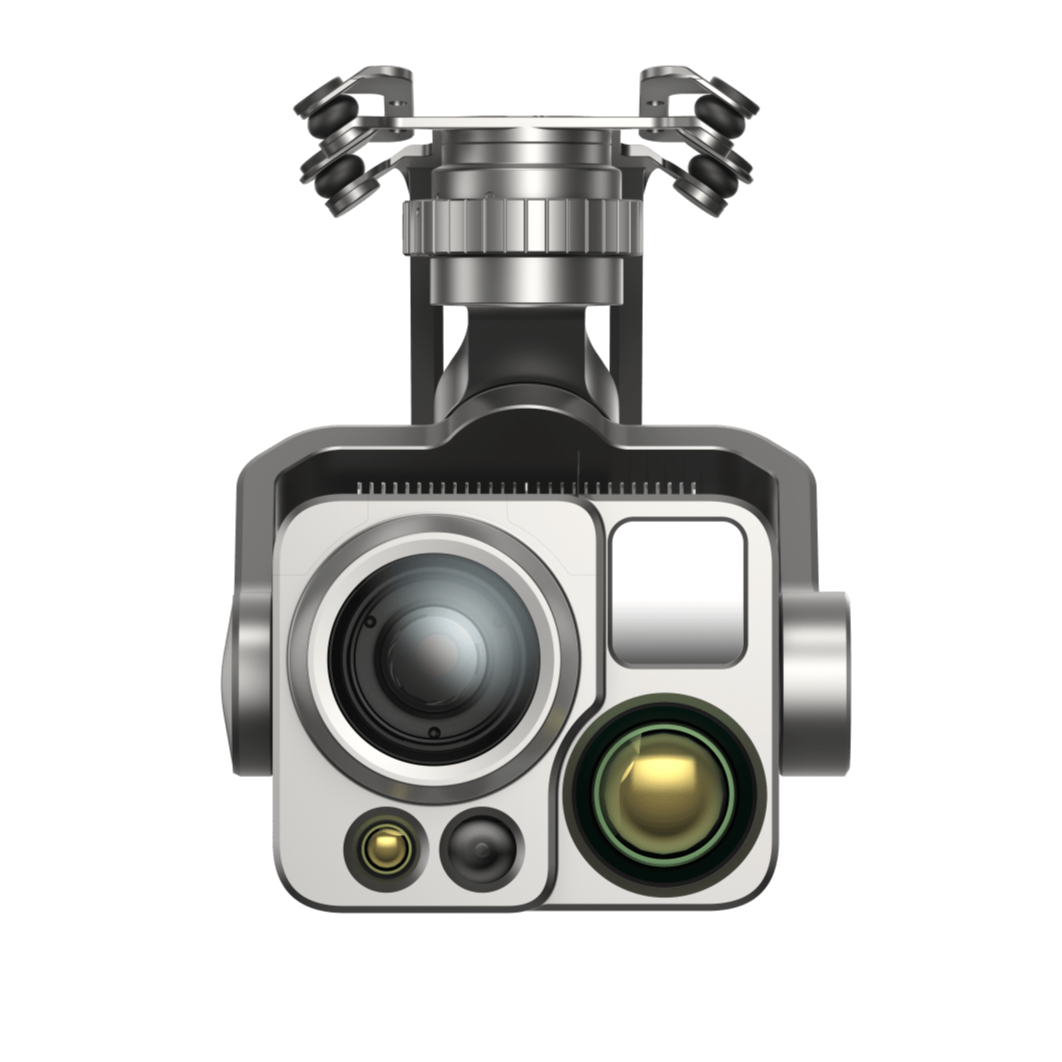

The Autel Robotics DG-L35T Gimbal is a versatile payload, integrating dual thermal imaging cameras (short/long focal length), a 4K 35x night vision Zoom camera, a wide-angle camera, and a laser rangefinder, giving you full-spectrum target monitoring and efficient support for long-range reconnaissance scenarios.
Key Features
- Zoom Camera:
- 8 MP
- 4K 35x optical zoom
- 560x hybrid zoom
- Supports ultra-sensitive starlight vision
- Laser Rangefinder:
- Measurement range: 10-2000 meters
- Measurement accuracy: ± (1 meter + D×0.15%)
- Wide Camera:
- 48 MP
- Aperture: F/2.8
- DFOV: 84°
- Equivalent focal length: 24mm
- Dual Thermal Camera:
- 640*512
- 56x hybrid zoom
- 13mm focal length wide-angle thermal imaging
- 45mm focal length long-range thermal imaging
The Autel Robotics DG-L35T Gimbal is included in the Autel EVO Alpha DG-L35T Bundle.
In the Box
1 – Autel Robotics Alpha DG-L35T Gimbal
Specifications
| DG-L35T | |
| Autel Alpha Wide Camera | |
| Sensor | 1/2 CMOS, Effective pixels: 48M |
| Lens | DFOV: 84° Equivalent Focal Length: 24 mm Aperture: f/2.8 Focusing Distance: 1m ~ ∞ |
| ISO Range | Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO256000) |
| Autel Alpha Zoom Camera | |
| Sensor | 1/1.8″ CMOS |
| Lens | FOV: 66.7-34.6° Focal Length: 34.7~838mm Aperture: f/1.61~f/5.19 |
| Zoom Range | Optical Zoom: 1~35 times Digital Zoom: 35~560 times |
| ISO Range | Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO320000) |
| Photo | Format: 8bit JPG，12bit DNG Resolution: 3840*2160 |
| Video | Format: MP4/MOV Max Resolution: 3840*2160 P30 |
| Autel Alpha Thermal Camera (Wide) | |
| Sensor | Uncooled VOx Microbolometer |
| Lens | FOV：42° Focal length: 13mm Aperture: f/1.2 |
| Resolution | 640*512 P25 |
| Temperature Measurement Range | -20℃ to +150℃，0℃ to +550℃ |
| Temperature Measurement Accuracy | 3℃ or ±3% of reading (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃ to 60℃) |
| Autel Alpha Thermal Camera (Tele) | |
| Sensor | Uncooled VOx Microbolometer |
| Lens | FOV：12.3° Focal length: 45mm Aperture: f/1.2 |
| Zoom Range | Wide Digital Zoom: 1~3.5 times Tele Digital Zoom: 3.5~56 times |
| Resolution | 640*512 P25 |
| Temperature Measurement Range | -20℃ to +150℃，0℃ to +550℃ |
| Temperature Measurement Accuracy | 3℃ or ±3% of reading (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃ to 60℃) |
| Autel Alpha Laser Rangefinder | |
| Measuring Range | 10-2000m |
| Measurement Accuracy | ± (1m + D×0.15%) *D is the distance to a vertical surface |
